Dashboard scripts

$olap.setLayoutGraph()

Options for the placing are either first or last. The size parameters sets the width of the graph area, using bootstrap code.

$olap.setLayoutGraph("first","XS12","SM12","MD12","LG12")

$olap.setLayoutGraphPosition()

Options for the placing are either first or last.

$olap.setLayoutGraphPosition("first")

$olap.setLayoutGraphSize()

Sets the width of the graph area, using bootstrap code.

$olap.setLayoutGraphSize("XS12","SM12","MD12","LG12")

$olap.setLayoutGridSize()

Sets the width of the drillreport area, using bootstrap code.

$olap.setLayoutGridSize("XS12","SM12","MD12","LG12")

$olap.setLayoutKpi()

Options for the placing are either first or last. The size parameters sets the width of the KPI area, using bootstrap code.

$olap.setLayoutKpi("first","XS12","SM12","MD12","LG12")

$olap.setLayoutKpiPosition()

Options for the placing are either first or last.

 $olap.setLayoutKpiPosition("first")

$olap.setLayoutKpiSize()

Sets the width of KPI area, using bootstrap code.

$olap.setLayoutKpiSize("XS12","SM12","MD12","LG12")

Dashboard tips

• KPIs must be placed either before or after graph/grid elements in a dashboard.
• The grid scripts are related to the drillreport.
• The grid scripts do not have first/last option as the drilltable will adjust according to the other elements.
• You can split the screen horizontally by using the bootstrap code.
• Addon tables are always considered as graph elements.
• The drillreport must be based on the datasource the report is built on, the other elements can have other datasources.

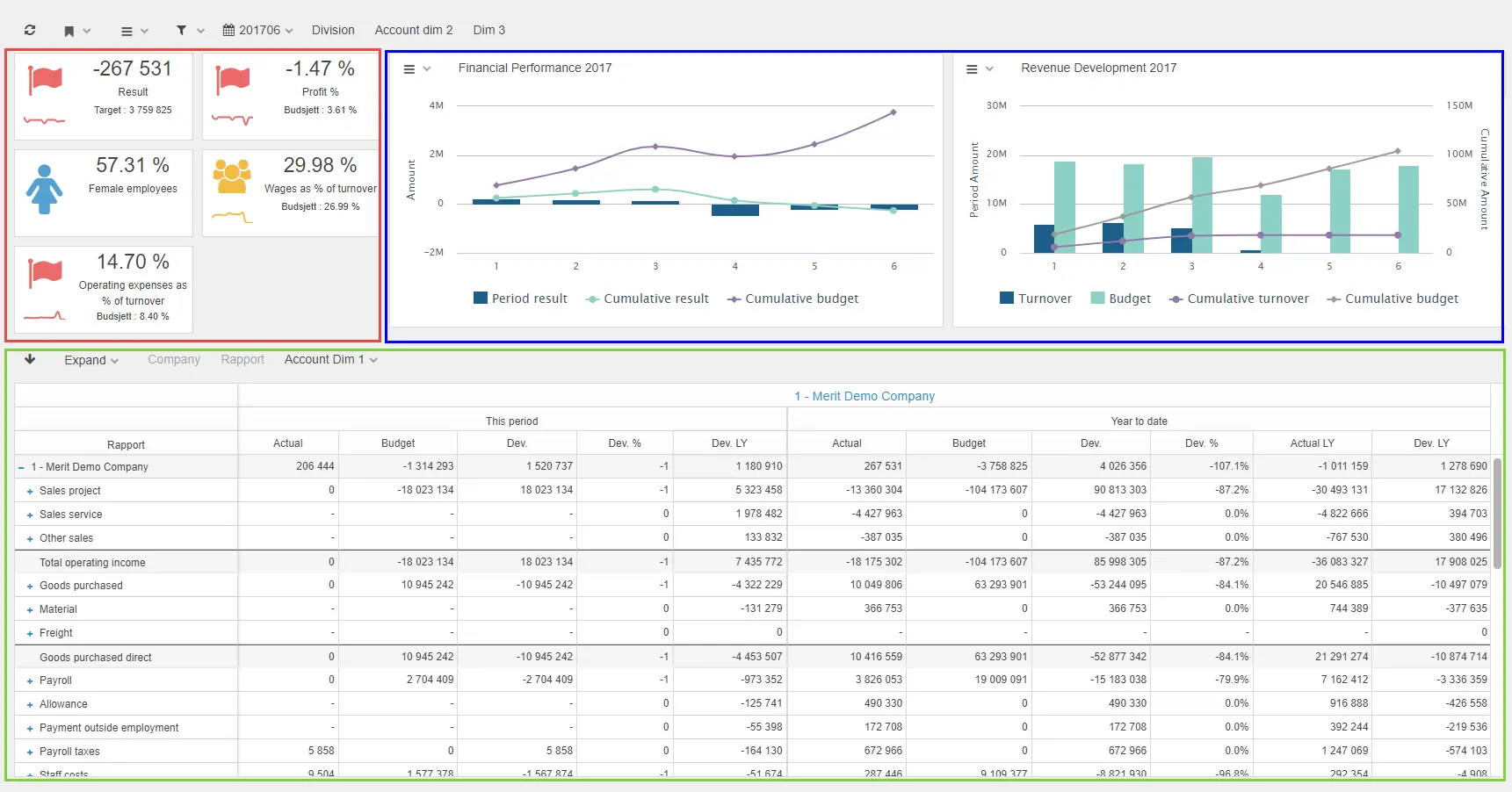

• Each dashboard area (square) can only have one type of dashboard element (KPIs, graphs/addon tables, drillreport). And each element can only be used once, e.g. you can not have graphs in two different areas.

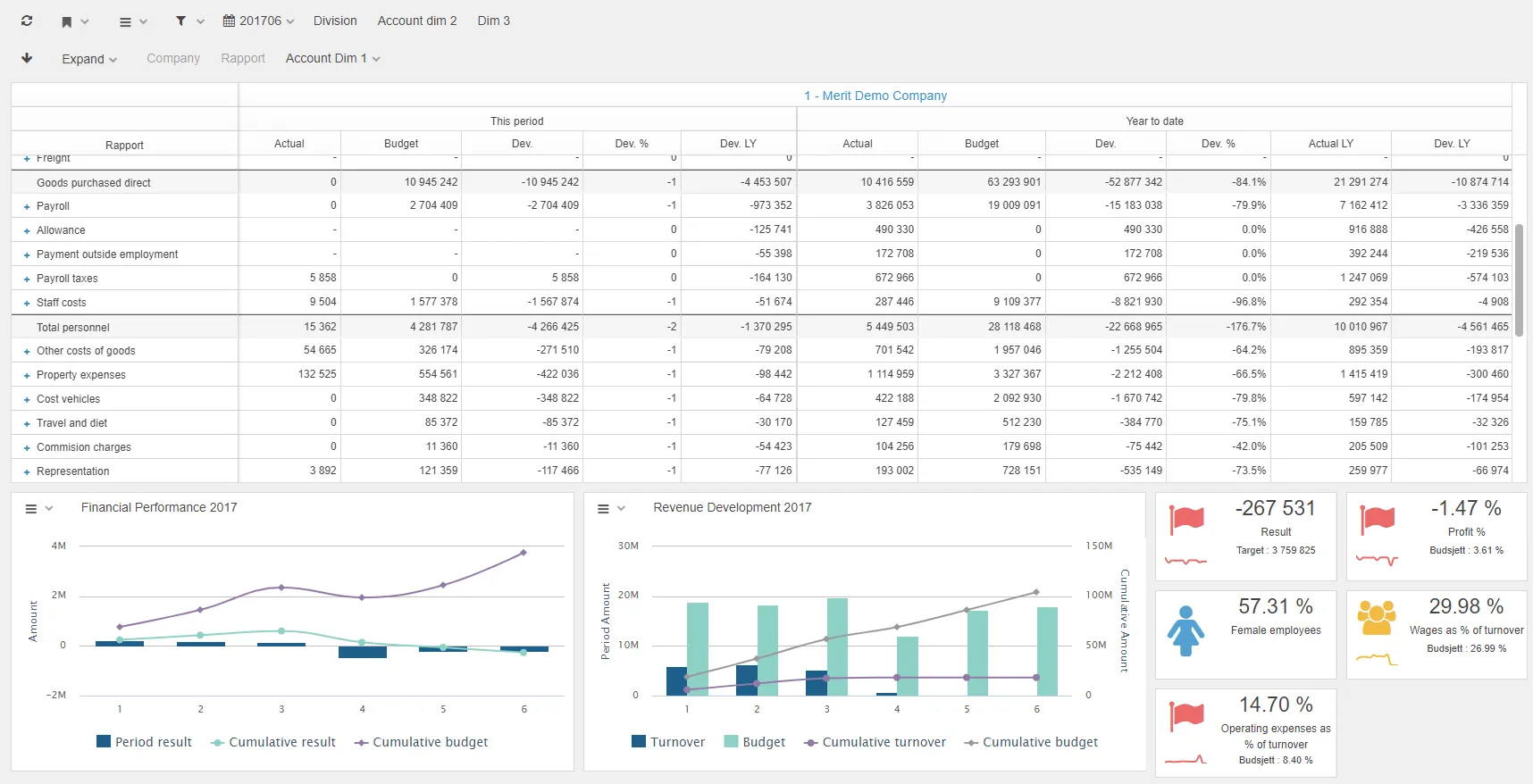

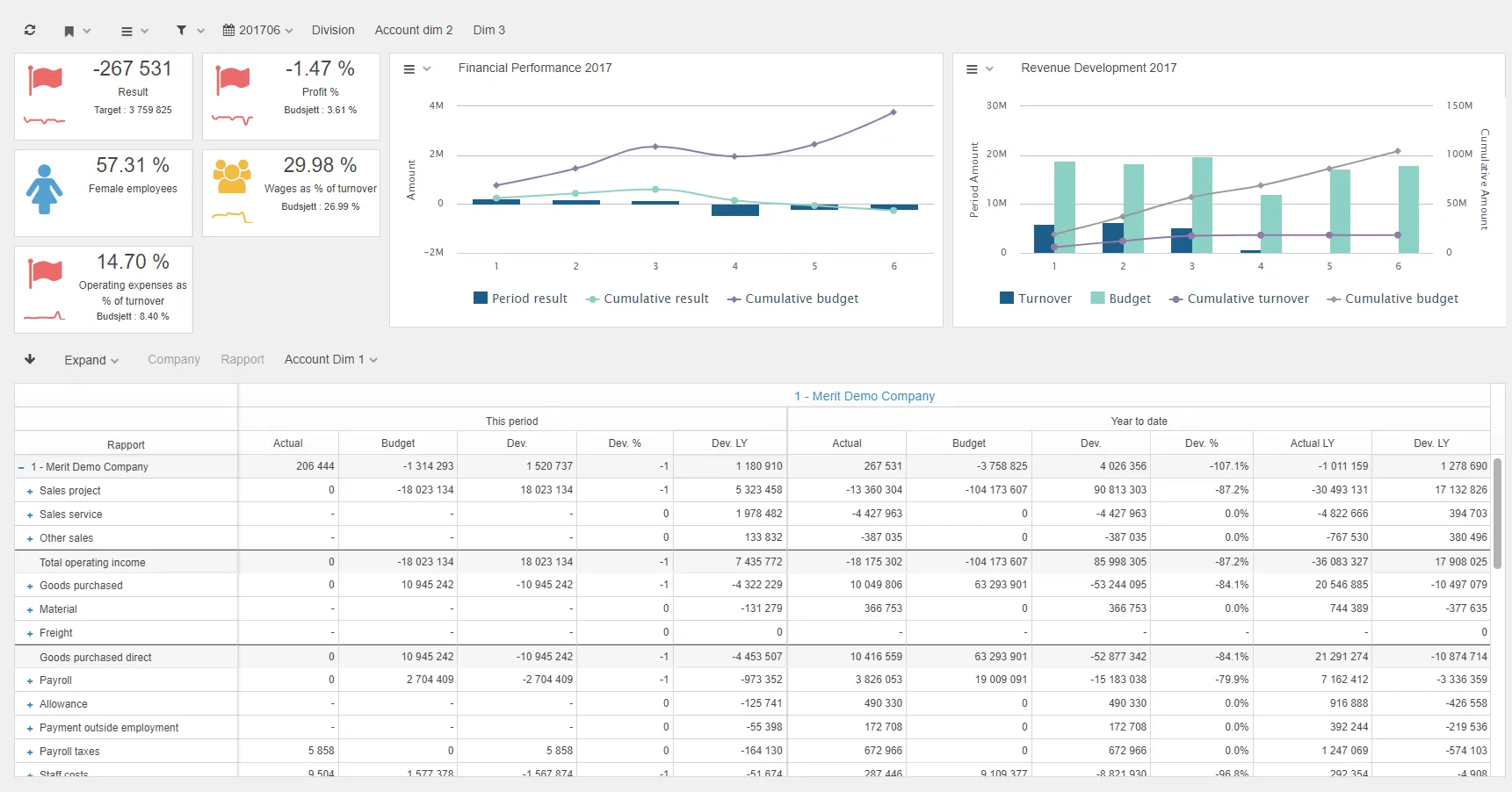

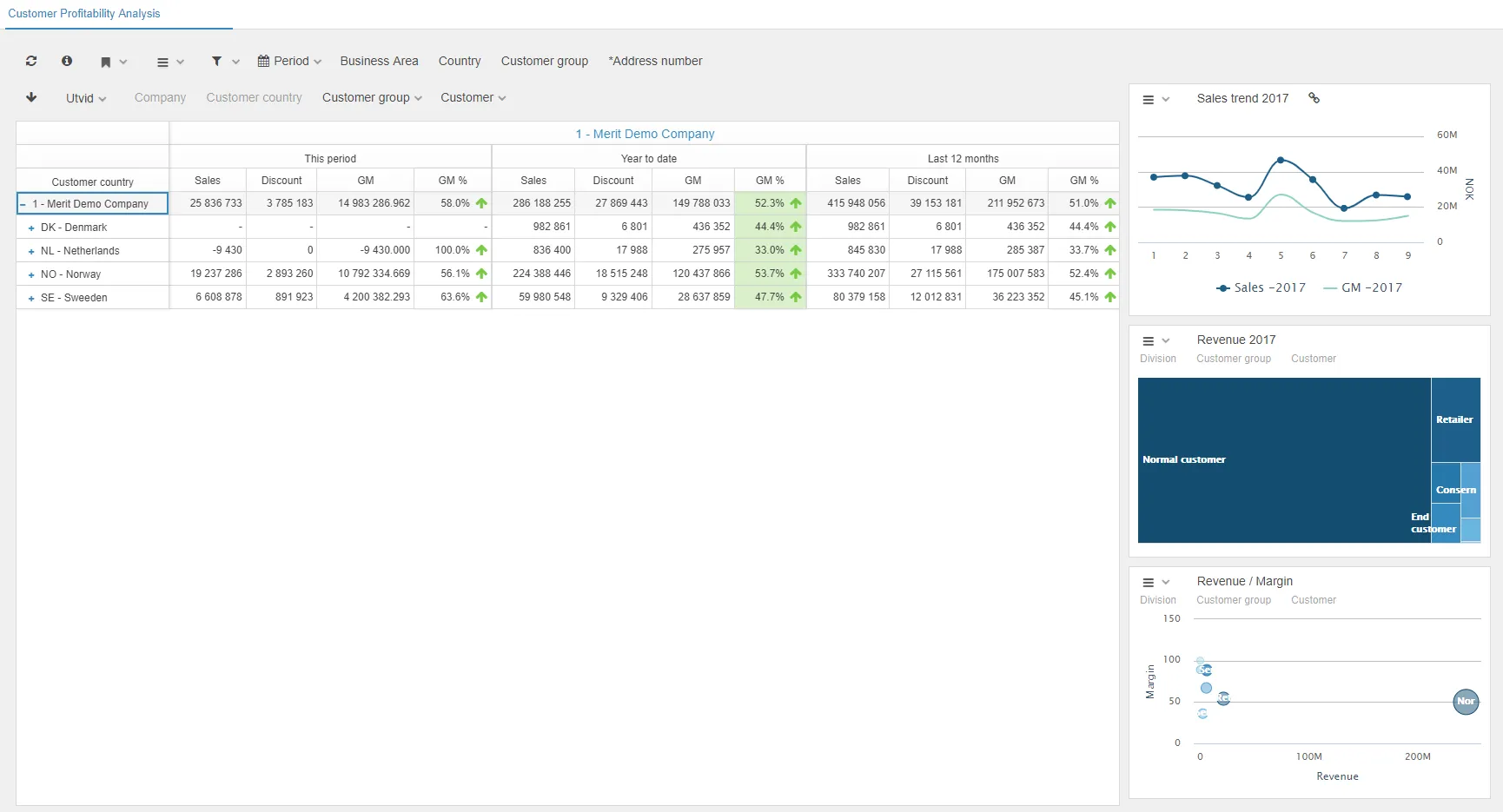

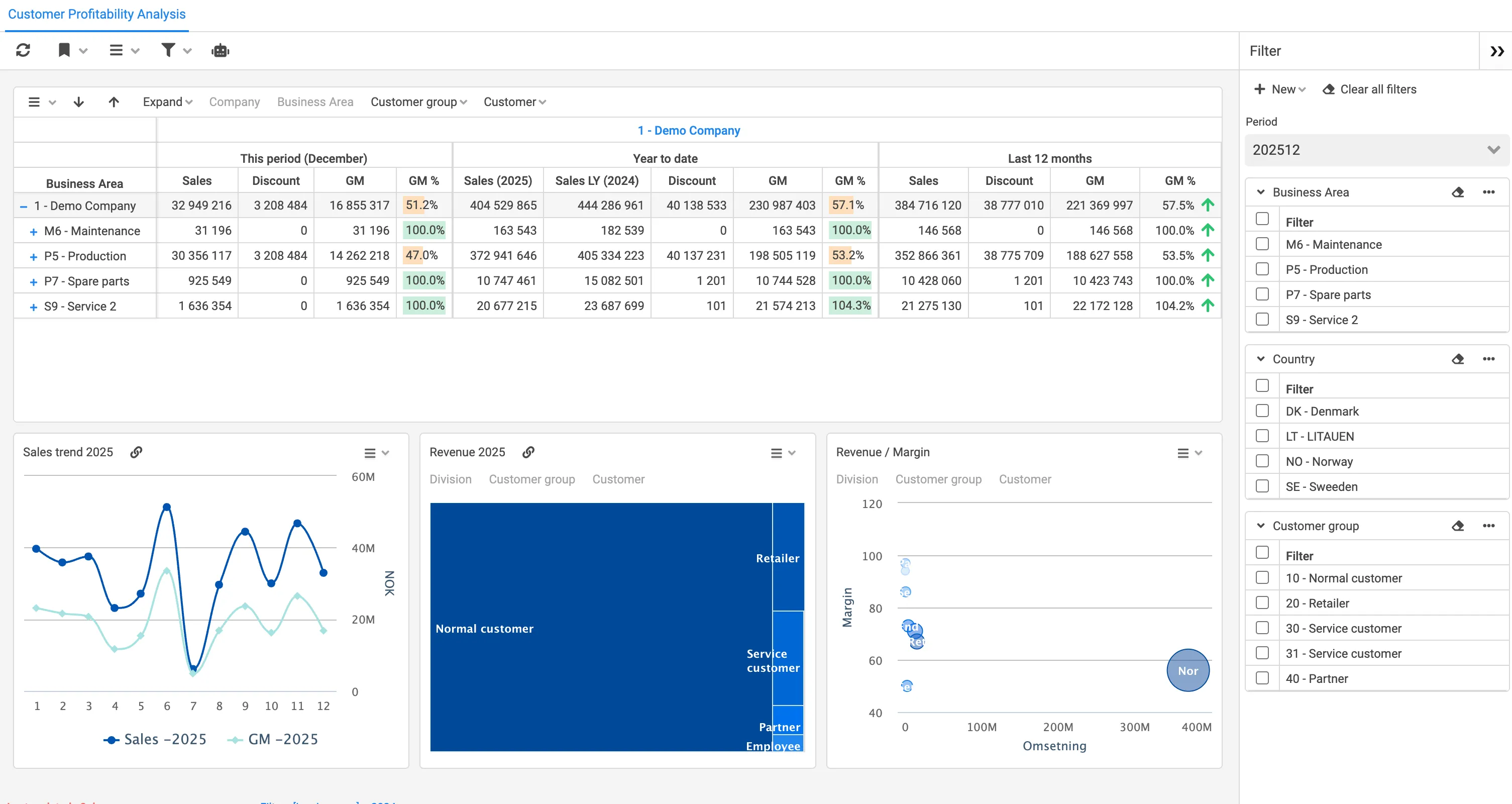

Dashboard Examples

$olap.setLayoutGraph("last","XS12","SM12","MD3","LG3")
$olap.setLayoutGridSize("XS12","SM12","MD9","LG9")
$olap.setMainGraphHeight(33)

$olap.setLayoutKpi("last","XS12","SM12","MD3","LG3")
$olap.setLayoutGridSize("XS12","SM12","MD9","LG12")
$olap.setGridHeight(60)
$olap.setLayoutGraph("last","XS12","SM12","MD12","LG9")

$olap.setNumberOfKpiRows(3)
$olap.setLayoutGridSize("XS12","SM12","MD9","LG12")
$olap.setGridHeight(60)
$olap.setLayoutGraph("first","XS12","SM12","MD12","LG9")
$olap.setLayoutKpi("first","XS12","SM12","MD3","LG3")
